产品详情
  • 产品名称:PVC Pvdf 2r Cpvc Packing Tellerette Ring

  • 产品型号:
  • 产品厂商:NKCHEM
  • 产品文档:
你添加了1件商品 查看购物车
简单介绍:

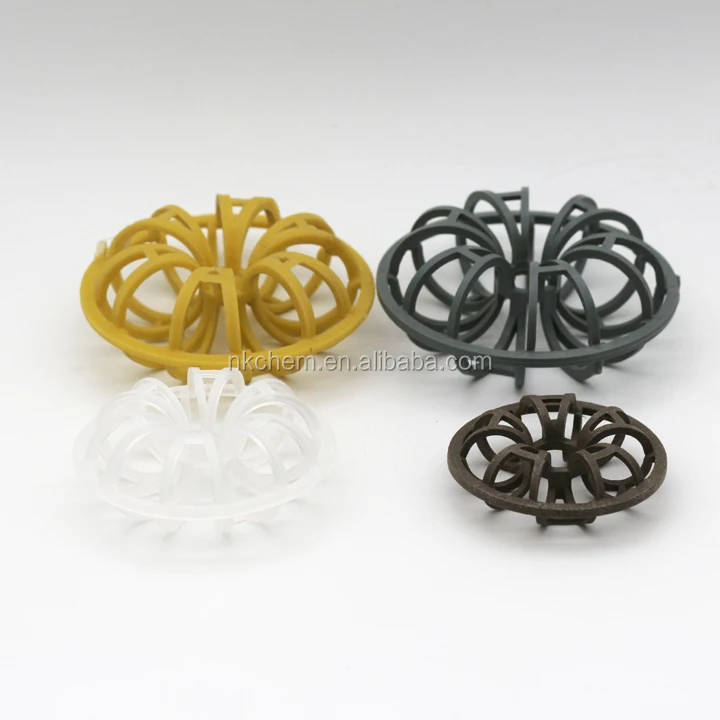

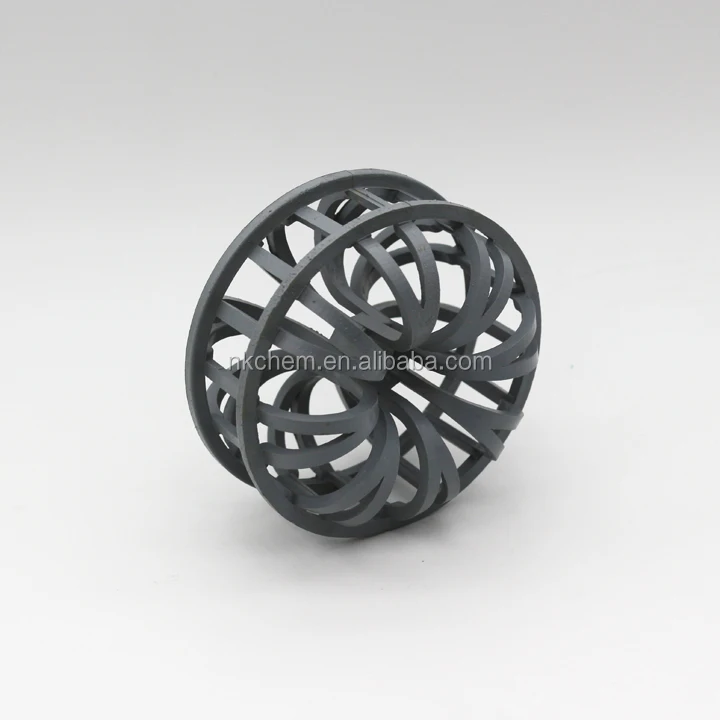

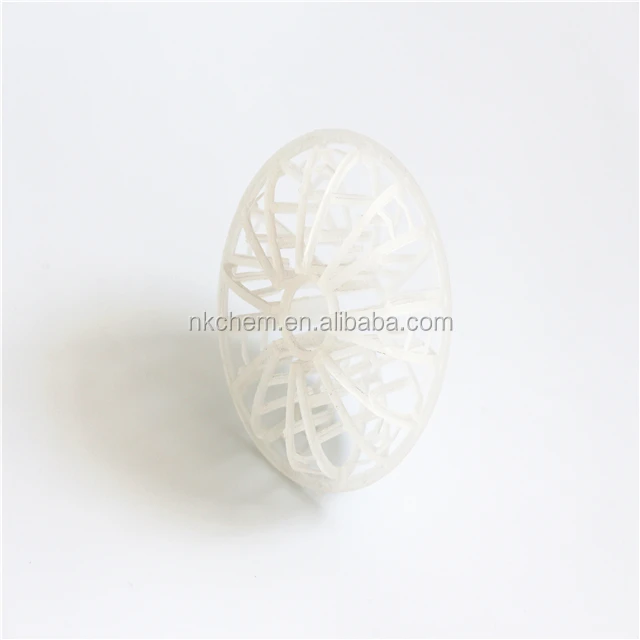

Plastic tellerette packing ring is also named Teller Ring and tellerate rosette ring which is made up of twelve radial arranged small rings.
详情介绍:
Description
Plastic tellerette packing ring   is also named Teller Ring and tellerate rosette ring which is made up of twelve radial arranged small rings. It is also an economical and versatile industry standard with well known performance characteristics.
Product Properties
Name
Normal
mm
Diameter*Height*
Thickness mm
Surface area
m2/m3
Void space
%
Bulk density
kg/m3
No.elements
per/m3
Packing factor
m-1
Tellerette
ring
ø25
25*9*1.5*2
269
82
128
175000
488
ø47
47*19*3*3
185
88
111
32500
271
ø51
51*19*3*3
180
89
103
25000
255
ø59
59*19*3*3
150
92
102
17500
213
ø73
73*28*3*4
127
89
102
8000
180
ø95
95*37*3*6
94
90
88
3600
129
ø145
145*48*3*6
65
95
47
1100
76

Advantages:

Lower pressure drop, energy saving, high mass transfer efficiency.   Customers can choose products of different materials such as polyethylene(PE), polypropylene(PP), reinforced polypropylene(RPP), polyvinyl chloride(PVC), chlorinated polyvinyl chloride(CPVC) and polyvinyllidene fluoride(PVDF) based on different application requirements.

Application:

Absorption, scrubbing, and stripping services etc.
