plastic structured packing:plastic corrugated plate packing for purification of tail gas
Plastic structured packing has advantages such as light, high capacity, low pressure drop, large specific surface area, easy replacement, etc. It is widely used in unit operations like rectification, absorption and extraction. The material's heat resistance reaches 100°C for PP and 150°C for PVDF. The packing sheet may be perforated with small holes to increase mass transfer efficiency. If the separation requirement is not high, it needs no perforation to increase sheet stiffness.
Material : PP ,PVC, PVDF, PPR mic.
plastic structured packing technical Specification:
|
Size |
Specifific surface area m²/m3 |
Void volumme % |
Wave height mm |
Bulk desity kg/m3 |
Packing factor m-1 |
|
125Y |
125 |
98.5 |
25.4 |
65 |
3 |
|
250Y |
250 |
97 |
12.5 |
85 |
2.6 |
|
350Y |
350 |
95 |
9 |
120 |
2.0 |
|
500Y |
500 |
93 |
6.3 |
150 |
1.8 |
Types of Plastic Structured Packing:
1.The wire gauze packing is made of wire Knitting which is a mixture of PP and polyaor ylonitrile.

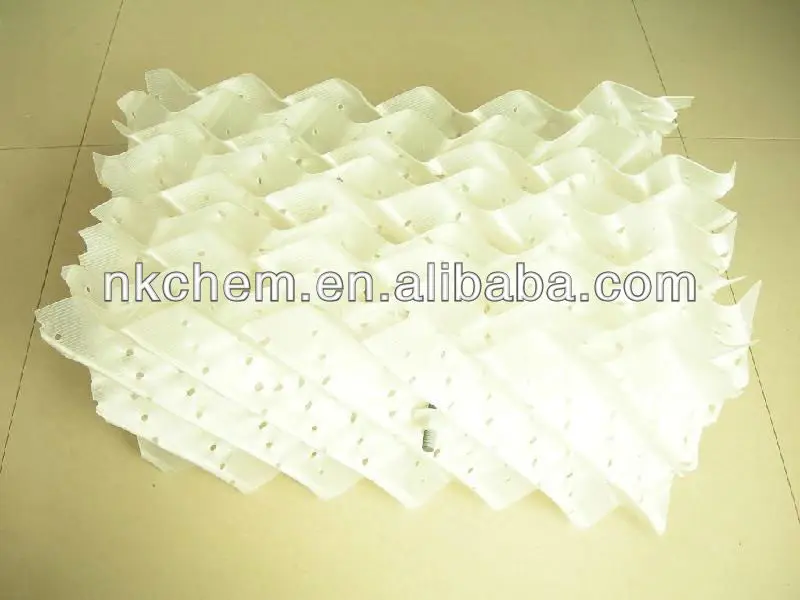

2. The plastic corrugated plate packing is made of pp or PVDF plate, which can be perforated to increase mass transferring efficiency.
Naike's main business: Column/Tower Packings (structured & random column packings in ceramic, metal and plastic), Ceramic products for Petrochemical, Chemical & Environmental industry etc (including: inert alumina ceramic balls for catalyst bed support media, alumina grinding ceramic balls/cylinders& Lining bricks, ceramic foam filters for cast filters in metallurgy/foundry industry and ceramic honeycomb substrate, molecular sieve. Naike is the top leading manufacturer of tower packing & chemical ceramic in China .
Naike has a distinguished and experienced team of experts & engineers to provide our customers the up-to-date mass transfer products & technologies at most competitive price. And our customer service dept is providing fast & good services to our customers because Naike takes the services as one of the important competitive factor too. Naike is the ISO 9001 certified company, quality is the first consideration of Naike. Our products are of German technology & workmanship but at Chinese competitive price.
Stock, To meet the requirement of urgent demand of our clients, Naike keeps enough quantity products in stock especially for the traditional standard random & structured packing, ceramic balls and molecular sieve.
Applications: Petrochemical, Chemical, Pollution Control, Metallurgy industry etc.

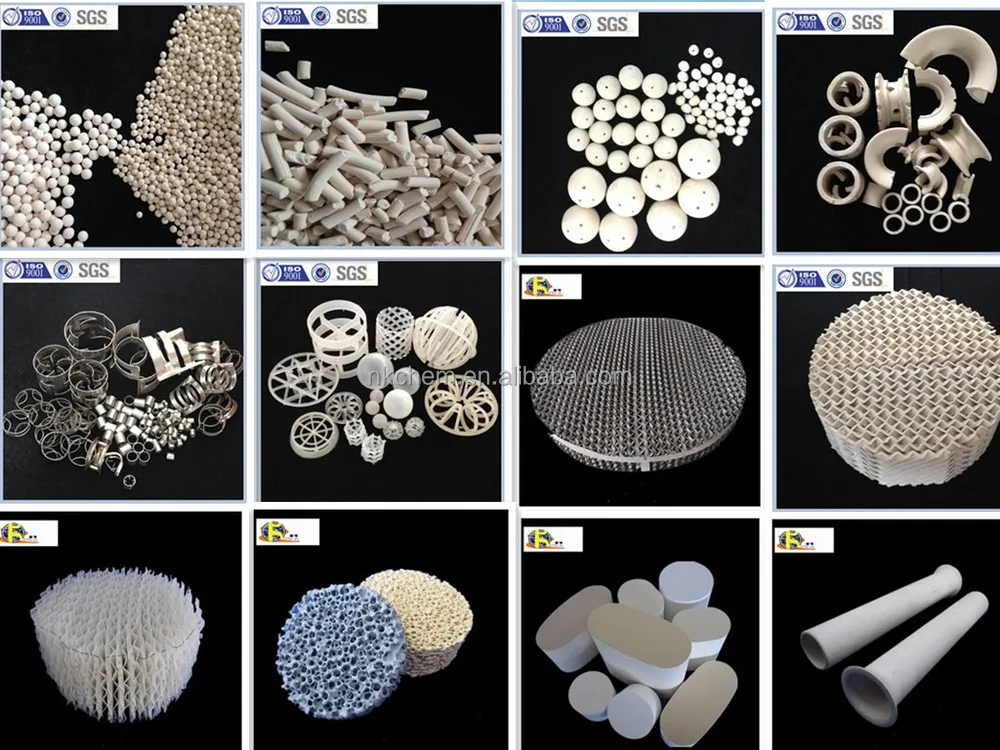

Products:
Random tower packing (column packing): intalox saddle, Super saddles, Nutter ring, Cross partition ring, Cascade ring, Raschig ring, Conjugate ring, Catalyst bed support inert alumina ceramic ball, VSP etc. material available with ceramic, plastic, metal.

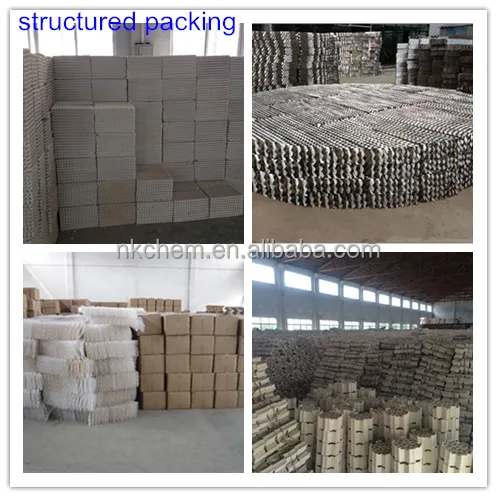

Structured tower packing (column packing): ceramic, plastic, metal structured tower packing.
Ceramic products: Ceramic Honeycomb Substrate, Ceramic Foam Filters, Molecular sieve, Acid resistant ceramic, Wear resistant ceramic, Grinding ceramic ball, Heat exchange ceramic and so on.
